一般描述

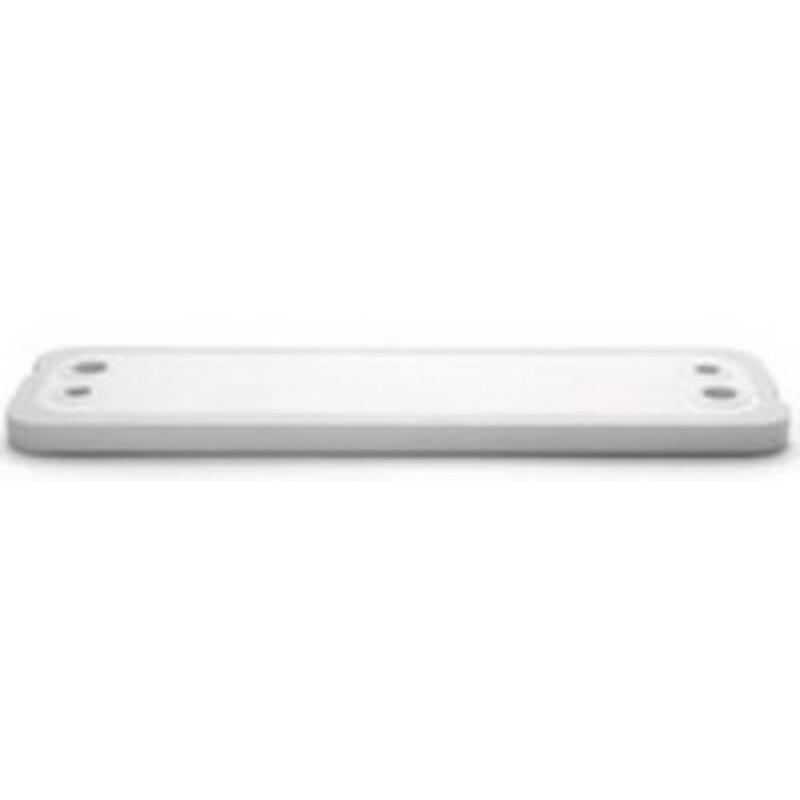

Pellicon® 3 cassettes with Biomax membrane are the optimum tangential flow filtration (TFF) devices for the filtration of solutions containing therapeutical proteins, albumin, hormones, vaccines and growth factors. These advanced, high-performance cassettes are ideal for today′s higher titer therapeutic antibodies, higher viscosity feed formulations as well as the more demanding filtration processes that require higher operating pressures, temperatures and caustic cleaning regimes. From small-scale to full-scale production, Pellicon® 3 cassettes are designed for use in research, process scale-up/scale-down, applications development and full-scale manufacturing. The Pellicon® 3 design and automated manufacturing process provides unbeatable performance consistency between cassette sizes. Pellicon® 3 devices also offer greater cassette size selection for improved scale-up and scale-down process development. The streamlined design allows operators to quickly and easily handle, install and remove Pellicon® 3 cassettes. The materials of construction are compatible with a broad range of chemical cleaning.
应用
monoclonal antibodies, recombinant and non-recombinant proteins, vaccines
特点和优势
Robust, void-free membrane provides optimum product retention and performance consistencyUnique feed screen design enables high mass transfer, flux for higher final concentrationFast, reliable scale up/down from lab to production scaleAutomated manufacturing delivers unbeatable performance consistency and reliabilityEasy to install and cleanExtreme temperature and chemical compatibility
其他说明
These products are manufactured in a facility which adheres to Good Manufacturing Practices.
| 物料 | composite regenerated cellulose (CRC) membrane polypropylene (Screen (feed)) polypropylene cap (end cap) polypropylene housing |
| 质量水平 | 400 |
| 产品线 | Pellicon® |
| 储存条件 | do not freeze |
| 参数 | 4-8 L/min-m2 flow rate |
| technique(s) | tangential flow filtration (TFF): suitable ultrafiltration: suitable |
| 高度 | 0.89 cm (0.35 in.) |
| 长度 | 20.6 cm (8.1 in.) |
| 过滤面积 | 88 cm2 |
| 尺寸 | 1.3 mL , Volume (feed) 2.8 mL , Volume (permeate) |
| 宽度 | 5.6 cm (2.2 in.) 56 mm |
| 基质 | (Ultracel) |
| 孔径 | 30 kDa pore size |
| pH值（酸碱度） | 1-14 |
| 储存温度 | 2-8°C |
| 长度(mm) | |
| 宽度(mm) | |
| 高度(mm) | |
| 重量(kg) |
-
