一般描述

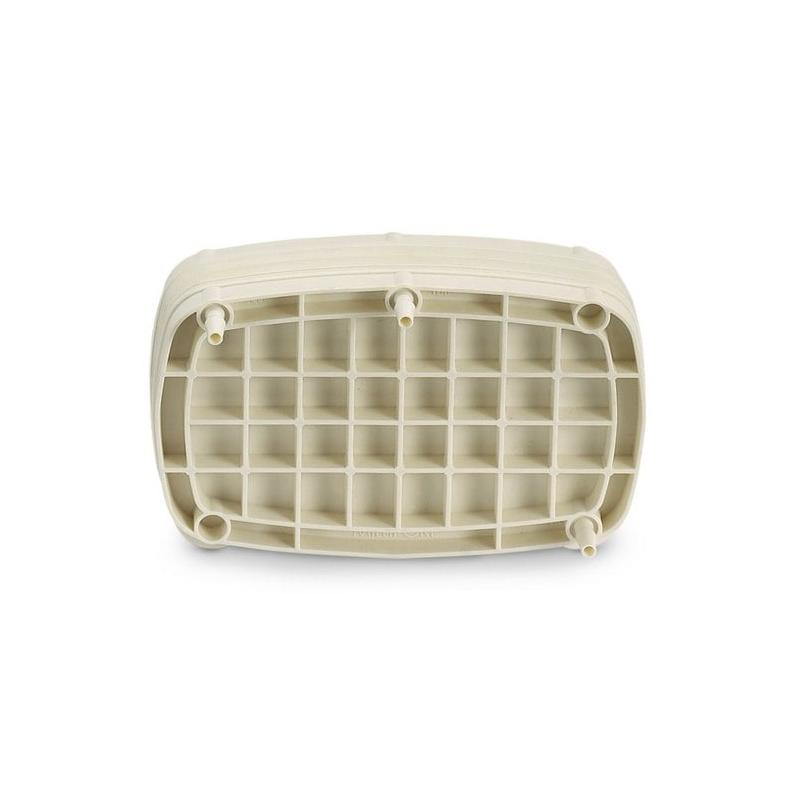

The Millistak+® depth filter media is offered in a scalable, disposable format providing greater flexibility because of its unique modular design. The Millistak+® MD0HC054H1 comes in a High Capacity POD format featuring a 14 cm (H) x 22 cm (L) and a filtration area of 0.054 m2. This D0HC media series delivers optimal performance through a gradient density matri, ideal for primary clarification applications. Millistak+® Pod filters are available in three distinct series of media grades in order to meet your specific needs - DE, CE and HC. The Millistak+® Pod system is ideal for a wide variety of primary and secondary clarification applications, including cell cultures, yeast and E. coli lysates post centrifuge, E. coli refolds, media, vaccines, plasma proteins and sera. Easy to Use With the compact, modular design of our Millistak+® new Pod system, you can increase productivity and shorten cycle times. Installation and setup of the Pod system is simple and straightforward. The unique design of the disposable adapters and disposable manifolds makes it easy to connect the Pod filters to rest of the unit operations in the process. The self-contained and disposable nature of the system protects operators from exposure to biohazards and eliminates maintenance as well as cleaning validation requirements.
特点和优势
Low hold-up volume for greater product yield Broad range of media types offered in single and multilayer products Millistak+ HC dual-action media improves prefiltration and compresses clarification Flexible, modular format offers scalability from 5 to 12,000 liters or more Patented disposable design eliminates need for housing, CIP or cleaning validation Self-contained Pod filters protect operators from exposure to biohazards Robust construction is easy to use and set up Smaller footprint facilitates use in tight spaces
产品规格
Filter Grade: D0HC
制备说明
Sterilization Method 1 autoclave cycle of 60 min @ 123 ºC
分析说明
Gravimetric Extractables: After 24 hour static soak in pure water (Type 1 DI Water) post autoclave (1 cycle of 60 minutes at 123 °C) and pure water flush of 100 L/m2 of media surface area
物料 | cellulose filter aid (inorganic) glass fiber-reinforced polypropylene |
质量水平 | 400 |
描述 | Primary clarification directly out of the bioreactor |
特点 | hydrophilic |
manufacturer/tradename | Millistak+® |
参数 | 1 bar max. differential pressure (15 psid) at 80 °C (Forward) 1 bar max. inlet pressure (15 psi) at 80 °C 2.1 bar max. differential pressure (30 psid) at 25 °C (Forward) 2.1 bar max. differential pressure (30 psid) at 25 °C (Reverse) 3.5 bar max. inlet pressure (50 psi) at 25 °C |
高度 | 14 cm (5.3 in.) |
长度 | 22 cm (8.5 in.) |
过滤面积 | 0.054 m2 |
杂质 | <0.25 EU/mL (LAL test, Aqueous extraction) |
gravimetric extractables | 39-69 mg/m2 |
input | sample type liquid |
电导率 | 3.64 – 10.5 μS/cm (product water; post autoclave (1 cycle of 60 minutes at 123 °C) and pure water flush of 10 liter per ft²(100 L/m²) of media surface area) |
过滤器级别 | D0HC |
运输 | ambient |
