一般描述

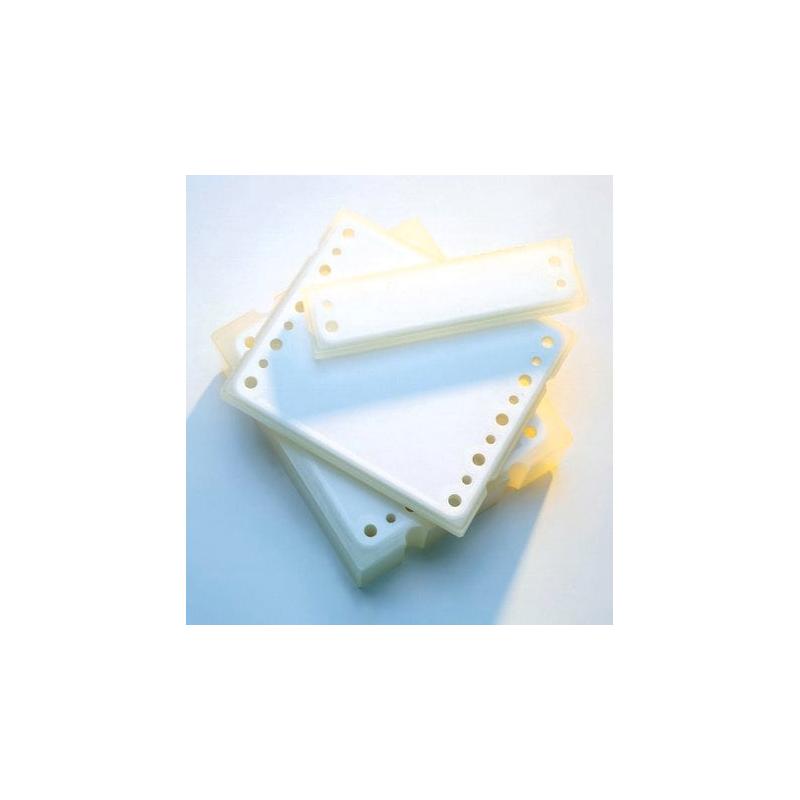

This product has been discontinued as notified in July 2022. The new generation Pellicon™ 3 cassettes are available. Please contact your local representative or technical support for more information. The equivalent P3B030A05 cassette is available now for purchase. The Pellicon® 2 Ultrafiltration BIOMAX 30 Cassette sets the standard in cassette-style tangential flow filtration devices. P2B030A05 was designed with process scale-up and applications development in mind. Millipore′s BIOMAX 30 polyethersulfone membrane has void-free structures that guard against leakage of solutes through microdefects normally associated with voids beneath the thin skins of conventional UF membranes. These void-free membranes are more permeable, resulting in high-flux with equivalent or superior product retention. These void-free membranes provide the advantages of fast, high yield processing and smaller systems. The Pellicon® 2 Cassette Ultrafiltration BIOMAX Module feature a filtration area of 0.5 m2 with a pore size of 30 kDa NMWCO.
应用
Concentration, desalting or buffer exchange of: Protein solutionsPolysaccharide solutionsVirus suspensions Harvest, washing or clarification of: Cell cultures and lysatesColloidal suspensionsViral cultures
特点和优势
Type A screen (tight screen)Leading-edge void- free membranes to match virtually any separation challengeShort flow path for higher flux and higher resolution separation capabilityChoice of flow channel configuration providing process optimization capabilityPredictable, fast, scale-upTrue linear scalability from laboratory size modules to industrial assemblies for processing thousands of litersBrings higher resolution, improved yields and superior back-pressure resistanceUltracel membranes are composite membranes cast on a microporous substrate for defect-free membranes with superior
其他说明
These products are manufactured in a facility which adheres to FDA Good Manufacturing Practices.
分析说明
Gravimetric Extractables: after a water flush
物料 | polyethersulfone polypropylene screen polyurethane adhesive |
质量水平 | 400 |
manufacturer/tradename | Pellicon® |
参数 | 0.33 bar max. transmembrane pressure (5 psig) (reverse) 4-6 L/min recirculation rate at 1.4 bar (20 psi) 7 bar max. transmembrane pressure (100 psig) at 30 °C (forward) |
technique(s) | analytical sample preparation: suitable protein purification: suitable |
高度 | 1.5 cm (0.6 in.) |
长度 | 21 cm (8.3 in.) |
宽度 | 17.8 cm (7.0 in.) |
过滤面积 | 0.5 m2 |
membrane nominal area | 0.5 m2 |
gravimetric extractables | ≤1500 mg/m2 |
基质 | Biomax® |
孔径 | 30 kDa NMWCO |
pH值(酸碱度) | 1-14 |
