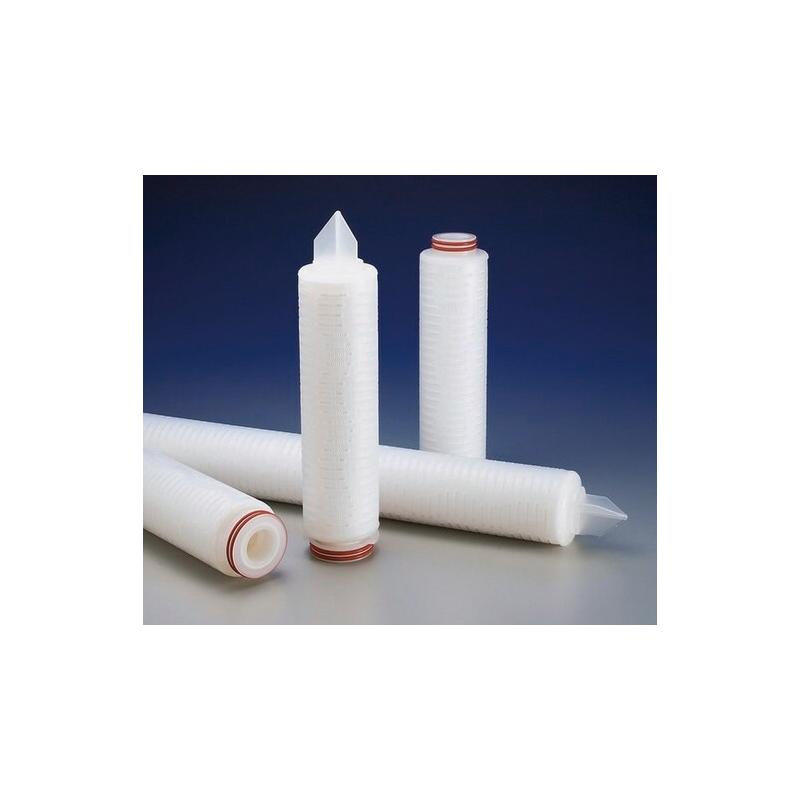

产品介绍
Product Description
一般描述
设备配置:纯化柱
特点和优势
每个滤芯在85 Nm3/h (50 SCFM)流速下,可截留108–1010空斑形成单位的ΦX-174病毒颗粒气溶胶。
包装
双层易开袋
质量
截留缺陷短波单胞菌(原名:缺陷假单胞菌)液体气溶胶21天,挑战最低值10⁷ CFU/cm²
制备说明
本产品采用符合21 CFR 210.3(b)(6)中规定的“无纤维释放”过滤器标准的PTFE膜生产。
分析说明
HydroCorr:≤2.6 bar(38 psig)压力下,10英寸滤芯的水流量≤0.75 mL/min
其他说明
使用说明 生物截留:微生物作用机制:过滤(体积排阻)应用:生物处理预期用途:减少或去除微生物/生物负荷使用说明:参见蒸汽灭菌&《完整性测试程序指南》和《目视检查指南》**页储存声明:干燥储存处置声明:根据国家、省市和当地适用法规处置。
技术参数
Specifications
物料 | PTFE polypropylene polypropylene support silicone seal |
质量水平 | 400 |
无菌性 | non-sterile |
sterilization compatibility | steam-in-place compatible |
产品线 | Aervent® |
特点 | hydrophobic |
manufacturer/tradename | Aervent® |
参数 | ≤24 mL/min nitrogen diffusion at 970 mbar (14 psig) and 23 °C (in 70/30% IPA/water) 1.7 bar max. inlet pressure (25 psi) at 80 °C 1.8 bar max. differential pressure (25 psid) at 80 °C (Forward) 4.1 bar max. differential pressure (60 psid) (Reverse; intermittent) 4.1 bar max. inlet pressure (60 psi) (Reverse; Intermittent) 5.5 bar max. differential pressure (80 psid) at 25 °C (Forward) 5.5 bar max. inlet pressure (80 psi) at 25 °C (Forward) |
technique(s) | gas filtration: suitable |
长度 | 10 in. |
宽度 | 2.7 in. |
cartridge nominal length | 10 in. (25 cm) |
直径 | 6.9 cm (2.7 in.) |
过滤面积 | 0.65 m2 |
杂质 | <0.25 EU/mL USP bacterial endotoxins (LAL test, aqueous extraction) |
gravimetric extractables | ≤35 mg/cartridge |
基质 | Aervent® |
孔径 | 0.2 μm pore size |
input | sample type gas |
泡点 | ≥1100 mbar (16 psig), nitrogen with 70/30% IPA/water at 23 °C |
柱代码 | Code 7 |
长度(mm) | |
宽度(mm) | |
高度(mm) | |
重量(kg) |
