产品介绍
Product Description
一般描述
带有疏水性 Fluoropore 或 Millipore Express PLUS PES 滤膜的 Millex® 针筒式过滤器非常适合用于气体的管线灭菌和无菌容器的通风,带有 Fluoropore 滤膜的过滤器还可用于对有机溶液进行灭菌或澄清。还有专门的过滤器单元,可保护血液透析换能器免受血液和水分的侵蚀。50 mm Millex 过滤器单元特别适用于真空管线保护。所有单位都是双向的。 特点 & 优势: •专用过滤器单元可保护血液透析换能器免受血液和水分的侵蚀 •50 mm Millex 单元非常适合真空管线保护 •所有 Millex 疏水性 PTFE 单元均为双向流动 应用: 灭菌气体、真空管线保护、无菌容器通风、有机溶液灭菌和澄清
应用

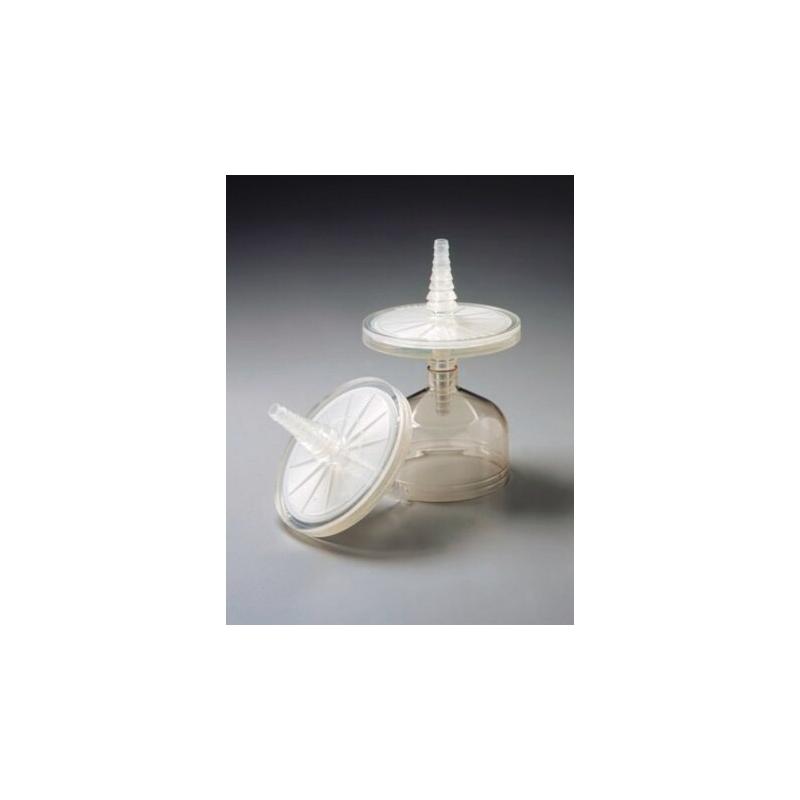

直径50 mm的无菌针头滤器,配0.22 µm孔径亲水性聚醚砜(PES)滤膜。每包10个。
外形
色码:透明入口/透明出口
制备说明
灭菌方法 伽马射线
其他说明
使用说明 生物截留:微生物作用方式:过滤应用:无菌过滤预期用途:气体除菌、容器通气除菌、水溶液除菌或澄清使用说明:请参阅《Millex® 针式过滤器用户指南》中的使用说明部分储存说明:干燥储存处置声明:根据国家、省市和当地适用法规处置。
技术参数
Specifications
物料 | methacrylate-butadiene-styrene (MBS) housing polyethersulfone membrane |
质量水平 | 400 |
无菌性 | γ-irradiated sterile |
产品线 | Millex® |
特点 | holdup volume< 1 mL hydrophilic |
manufacturer/tradename | Millex® |
参数 | 3.3 bar max. inlet pressure (50 psi) 45 °C max. temp. ~390 mL/min water flow rate at 15 psig |
technique(s) | pressure filtration: suitable sterile filtration: suitable (sterilization of tissue culture media, protein solutions or aqueous solutions) |
直径 | 50 mm |
过滤面积 | 19.6 cm2 (3 in2) |
housing diam. | 62 mm |
inlet to outlet H | 96 mm , including bell |
体积 | 4000-8000 mL |
基质 | Express PLUS™ |
孔径 | 0.22 μm pore size |
配件 | inlet stepped hose barb (1/4-1/2 in, with Female Luer slip interior) outlet filling bell |
运输 | ambient |
长度(mm) | |
宽度(mm) | |
高度(mm) | |
重量(kg) |
